We are a company dedicated to the supply of cathodic protection products and services, focused on providing comprehensive and effective solutions to our clients.

The STELTH® 2 is our most versatile reference electrode, as it performs well in most environments, from wet to dry, and from soil to concrete.

Copper/copper sulfate reference electrode with ceramic plug

Most common models:

• RE-5C with conical plug for soft surfaces

• RE-5 with flat-shaped plug for general use on soil surfaces

The Mc Miller electrodes have a transparent window to view the state of the saturated copper sulfate solution.

Supplied already with a load of copper sulfate crystals inside the tube.

The T-1 and T-3 models are injection-molded from Lexan® polycarbonate plastics to ensure maximum strength and UV protection, preventing failure due to prolonged exposure to sunlight. The Tinker & Rasor T-1 and T-3 are designed to withstand harsh weather conditions worldwide.

Tinker & Rasor offers a complete line of portable copper/copper sulfate reference electrodes. They are manufactured with the most durable materials to withstand years of heavy use. These fully functional half-cells can be recharged to ensure accurate readings for many years.

The Royston Handy Cap™ is a prefabricated assembly specifically designed for cathodic protection cables on pipelines and tanks. When pressed by hand into position over the anode conductor wire weld, it forms a thick, highly durable electrical insulation seal over the weld, the conductor wire end, and the surrounding area of the pipeline or tank.

The 3M 90-B1 branch splice is designed for use in outdoor or direct burial applications. It is used for splicing taps or branch lines in unshielded synthetic-insulated cables up to a maximum of 600 volts. (It can be used up to 5kV when used with unshielded single-core cables.)
mechanical connector).

The 3M™ Scotchcast™ 90-B1 Y-Resin Splice Kit insulates and seals against moisture Y-splices made with mechanical connectors

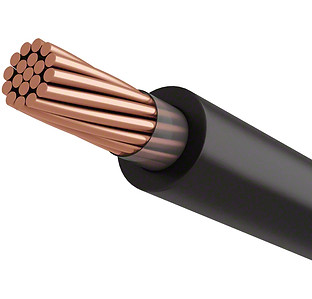

High dielectric strength, resistant to chemical agents, high corrosion resistance and excellent performance when buried and in humid places.

Maximum operating temperature 75°C

Voltage: 600/1000v

Coating type

* PULL HMWPE

* Single HMWPE lining

* Double lining / National

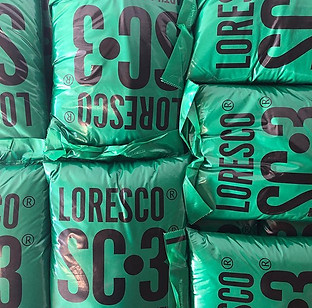

Loresco SC•3 is the best premium grounding fill in the Loresco product line.

Loresco SC•3 is specifically designed for anode beds that require a low resistivity medium.

• Bulk density: 74 pounds per cubic foot

• Predominantly round particles

• Surface of all particles modified for maximum electrical conductivity

• Dust-free particle size with a maximum size of 1 mm

• The minimum calcination temperature of the base materials is 1250 °C
